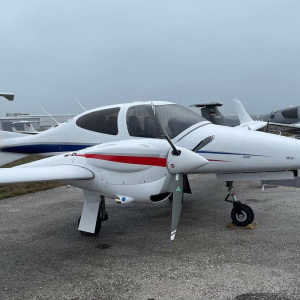

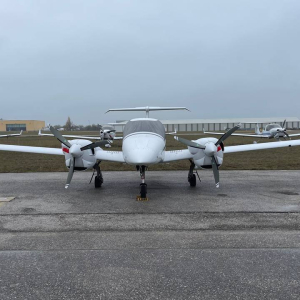

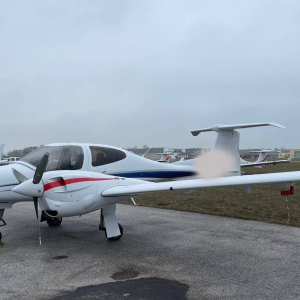

Diamond DA 42 IV Diamond DA 42 IV

Diamond DA 42 IV

Diamond DA 42 IV

Specifications

 Delivery term June 2023



Power plant Additional equipment
2x Austro Engine AE 300 turbocharged common-rail injected
2.0 liter Jet-A1 engine with 168 HP and EECU
single lever control system
Honeywell KN 63 remote DME
2x MT Propeller MTV-6-R-C-F/CF 190-69

Becker 3500 remote ADF
Flight data recorder iAero (Apibox)

3-blade constant speed propeller Avidyne TAS 605 A traffic advisory system
Аvionics Garmin GTX 345R ADS-B in/out transponder

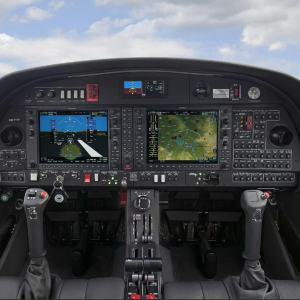

Integrated Garmin G1000 NXi Glass Panel Cockpit including: Air conditioning/RACC II system (powered by an additional alternator)
2x Garmin GDU 105x 10-inch flight display (primary function and multifunction display)  TKS deicing system
Garmin GEA 71B airframe/engine interface unit Built-in tablet mount provisions  (pilot and copilot armrests)
2x Garmin GIA 64 W COM/NAV/SBAS-GPS/GS/LOC
Garmin GMA 1360 digital audio system
Garmin GRS 79 attitude heading reference system
Garmin GDC 72 digital air data computer
Instrument lighting
Overhead cabin light
1x USB port each for pilot & copilot
Garmin GMU 44 magnetometer
Garmin GFC 700 automatic flight control system including yaw damper
Garmin GTX 335 R remote ADS-B out transponder
Garmin ChartView Approach Plates (subscription required)
ELT 406 MHz
Standby instruments (compass, attitude indicator, airspeed indicator (kts), altitude indicator (ft))
Garmin Flight Stream 510
Jeppesen PilotPak (IFR bundle), one year subscription free of charge
Safety concept
Composite cabin and safety seats (up to 26g)
„FAILSAFE” airframe and wing design
Lightning protection system
3-point safety belts automatic (all seats)
Garmin ESP (electronic stability & protection)
Gear warning horn muting system
Stick limiter
Interior
Diamond Depart Interior (Light Grey or Dark Grey)
Ergonomic seats and backrests, fabric inlays, carbon on transmission tunnel
Adjustable backrest for pilot and copilot
(with adjustable lumbar support)

Sun glare shields and canopy lining
1x USB port each for pilot and copilot
Instrument lighting
Overhead cabin light
Dual headset plugs (LEMO connector + standard jack connector)
Exterior
Hydraulic retractable landing gear
Heated pitot tube
High-gloss multi layer paint (non-RIM)/Standard color: white
Variety of exterior striping
White spinner, black air intake rings, white entry steps and entry grips
Registration markings
Electrically operated flap system
Landing and taxi lights (HID-Xenon)
Position and strobe lights with LED technology
Other eqipment
289 lt (76.4 US gal) long range fuel tank
Baggage extension with separate compartment
Nose baggage compartment accessible from both sides
Pitot cover
Tow bar
Tool kit
First aid kit, fire extinguisher, egress hammer, gust lock
Standard cockpit color: black
-->
