New single-engine four-seater by Diamond Aircraft! Standard/Optional equipped. Available now. Buy the aircraft and get a retraining course on it from Egmont Aviation Flight School for free!
Full range of Diamond aircraft see here

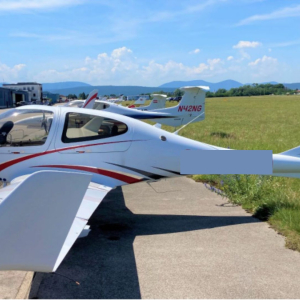

Diamond DA40 NG
Overview
Diamond DA40 NG
Specifications
| STANDART EQUIPMENT | OPTIONAL EQUIPMENT |
| Power plant | Avionics - optional |
| Austro Engine AE 300 turbocharged common-rail injected 2.0 liter Jet-A1 engine with 168 HP and EECU single lever control system |
Garmin GFC 700 automatic flight control system |
| MT Propeller MTV-6-R/190-69 | Honeywell KN 63 remote DME |
| 3-blade constant speed propeller | Becker 3500 remote ADF |
| Avionics | Garmin GTX 345R ADS-B in/out transponder |
| Integrated Garmin G1000 NXi glass panel cockpit incl.: | Avidyne TAS 605 A traffic advisory system |
| 2x Garmin GDU 105 x 10-inch flight display (primary function and multifunction display) |
Flight data recorder iAero (Apibox) |
| Garmin GEA 71B airframe/engine interface unit | Air conditioning/RACC II system (powered by an additional alternator) |
| 2x Garmin GIA 64 W COM/NAV/SBAS-GPS/GS/LOC | Built-in tablet mount provisions (pilot/copilot armrests) |
| Garmin GMA 1360 digital audio system | Hot weather kit (improved engine cooling) |
| Garmin GRS 79 attitude heading reference system | |
| Garmin GDC 72 digital air data computer | |
| Garmin GMU 44 magnetometer | |
| Garmin GTX 335 R remote ADS-B out Transponder | |
| Garmin ChartView approach plate (subscription required) | |
| ELT 406 MHz | |
| Standby instruments (compass, attitude indicator, air speed indicator (kts), altitude indicator (ft)) |
|
| Garmin Flight Stream 510 | |
| Jeppesen PilotPak (IFR bundle), one year subscription free of charge | |
| Interior equipment - Grey-Brown Standard Diamond Interior Design | |
| Ergonomic seats and backrests for pilot and copilot | |
| Adjustable backrest for pilot and copilot | |
| Sun glare shields and canopy lining | |
| Instrument lighting | |
| Overhead cabin light | |
| Baggage extension with separate compartment | |
| 1x USB port each for pilot & copilot | |
| Dual headset plugs (LEMO connector + standard jack connector for pilot & copilot, for passengers LEMO only) | |
| Exterior equipment - Twister red color combi Standard Diamond Exterior Design | |
| Heated pitot tube | |
| High-gloss multi layer paint | |
| Variety of exterior striping (Standard striping) | |
| Registration markings | |
| Electrically operated flap system | |
| Wheel fairings on main and nose landing gear | |
| Landing and taxi lights with LED technology | |
| Position and strobe lights with LED technology | |
| Safety concept | |
| Composite cabin and safety seats (up to 26g) | |
| „FAILSAFE” airframe and wing design | |
| Lightning protection system | |
| 3-point safety belts automatic (all seats) | |
| Other equipment - standard | |
| 147 lt (39 US gal) long range fuel tank | |
| Noise reduction muffler | |
| Pitot cover | |
| Tow bar | |
| Tool kit | |
| First aid kit, fire extinguisher, egress hammer, gust lock |
