Overview

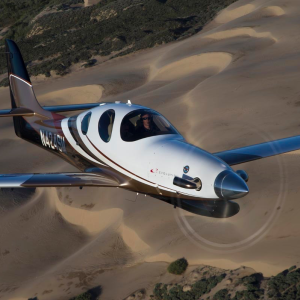

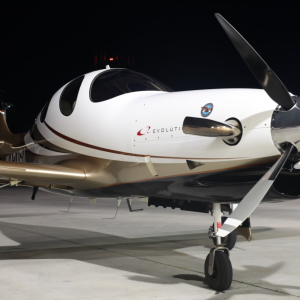

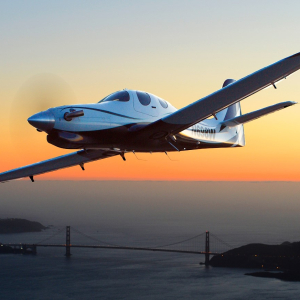

The Turbine Evolution’s pre-preg thermally cured carbon construction minimizes weight while its streamlined airframe cuts through the air diminishing drag. Add any of the Pratt & Whitney PT6 turboprop engine we now offer, and you have the ultimate power to weight combination.
Cockpit
The cabin airframe surrounds you in a custom, luxurious cabin, pressurized to 8000 feet at FL280 with a 6,5 psi pressure differential (better than the airlines). Pressurization is automatic, providing gentle climbs and descents of the cabin altitude with no discernable change.
Canopy
The canopy provides unmatched visibility for an airplane of this class.

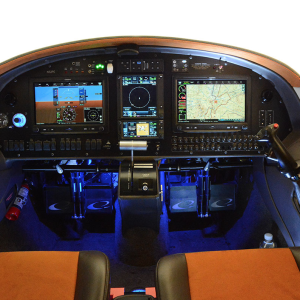

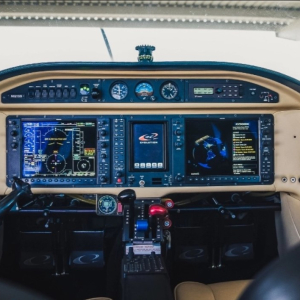

Dashboard
Each dashboard is equipped with the best avionics of the market.
Standard equipment:
- ADS-B Traffic
- S-XM weather
- Synthetic Vision
- Terrain Avoidance
- Bluetooth connectivity
- L3 Electronic backup
- Touchscreen pressurization and HVAC controls





Ventilation and heating
The aircraft is equipped with a heat and air conditioning system, which is automatic and will respond to the temperature you set on the touchscreen controller.

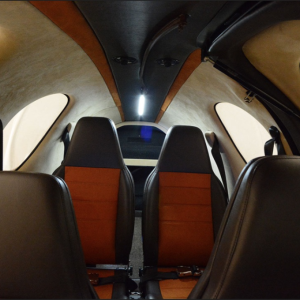

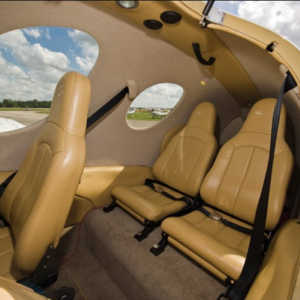

Seats
Comfortable and modern — select your choice of textile or leather designs, including choice of colors. The seats are high G, certified style safety seats.
The side sticks provide effortless hand flying.
Baggage compartment
The luggage compartment allows you to take up to 225 lbs (100 kg) to your next destination. Your luggages can be easily accessible from the cabin area.

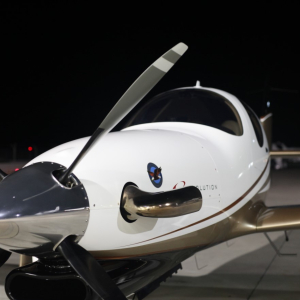

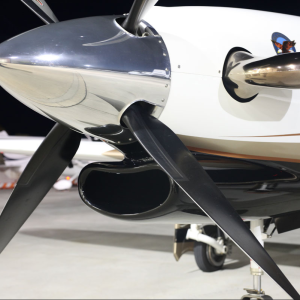

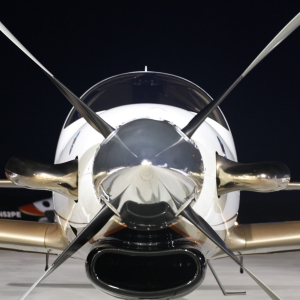

Propeller
Evolution Turbine can be equipped with:
- Hartzell 82.5" 5 Blades w/de-ice – carbon fiber swept tip constant speed
- Hartzell 82.5" 4 Blades w/de-ice - aluminium


Any other questions? Contact us!

JMB Evolution Turbo

Specifications

  EVOT-750 EVOT-850
PERFORMANCE
Take off & Landing 366 m 366 m
Best rate of climb 73 km/h 73 km/h
Max cruise speed 556 km/h 611 km/h
Stall speed 113 km/h 141 km/h
Vne 474 km/h 474 km/h
ENGINE
Manufacturer Pratt & Whitney Pratt & Whitney
Model PT6-135A PT6-140A
Horsepower 750hp 867 shp
DIMENSIONS
Wingspan 37 ft / 11,27 m 37 ft / 11,27 m
Length 30 ft / 9,14 m 30 ft / 9,14 m
Height 10 ft / 3,05 m 10 ft / 3,05 m
Cabin Width 115 cm 115 cm
Fuel tanks 168 gal / 635 L 168 gal / 635 L
WEIGHT
Empty weight 2650 lbs / 1202 kg 2670 lbs / 1 211 kg
Useful load 820 lbs / 372 kg 800 lbs / 363 kg
MTOW 4550 lbs / 2063 kg 4550 lbs / 2063 kg
